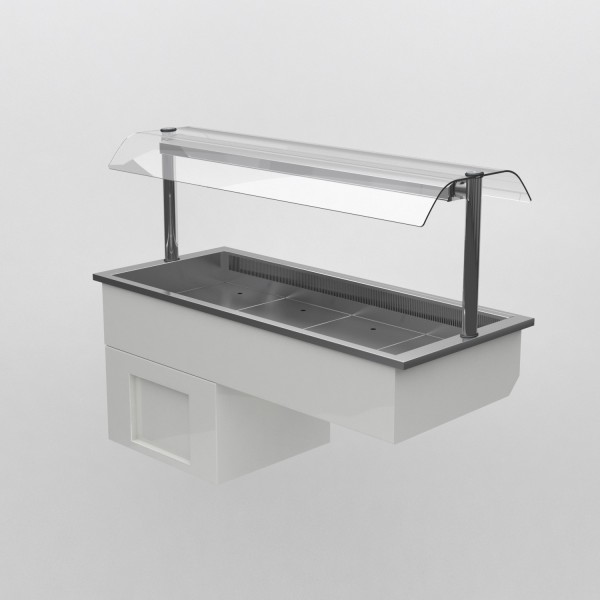

Counterline Integrale ICW2-GO 0.8m 2 Pan Chilled Display Well

Brand: Counterline

Product Code: ICW2-GO

Standard Delivery: Factory Order 15 Working Days

Lease to Buy Price: Lease to buy calculator

Ex VAT: (RRP: £2958) £2,141.00
Inc VAT: (RRP: £3,549.60 ) £2,569.20
You Save: 28%

The bespoke Counterline Integrale Chilled Display Well is a stylish flat bed chilled well, perfect for the display of salads, drinks and fruit. The gentle flow of convected air maintains pre-chilled food at a safe regulated temperature. The angle of the display deck can be adjusted for enhanced presentation. Five well sizes are available to fit your bespoke counter.


More Sizes and Styles

Chilled Display Well - 3 x 1/1 Pan W1175mm | 4 x 1/1 Pan W1525mm | 5 x 1/1 Pan W1875mm | 6 x 1/1 Pan W2330mm

Full Integrale Drop-In Range - Click Here


Product Information

  • External Dimensions: H 535 x W 825 x D 660mm
  • Standard Warranty: 1 Year Parts & Labour
  • Standard Delivery: Estimated 15 Working Days
  • Wattage: 1.7kW
  • Weight: 91kg
  • Capacity: 2 x 1/1 GN Pans
  • Built from 304 and 430 grade polished stainless steel
  • Curved toughened glass overshelf/sneeze screen
  • Full internal fuse protection
  • Electronic controllers located in gantry as standard
  • Chilled by recirculated cold air using fan blown evaporator
  • Integral condensing unit and automatic condensate evaporator
  • Resettable high pressure safety switch
  • Digital electronic temperature control
  • Display temperature 3-5°C in 25°C
  • Ambient at 50% relative humidity
  • Standard airflow comes in from the customer side and out of the operator side
  • The angle of the display deck can be adjusted for enhanced presentation
  • All units are supplied with a 1.5m lead as standard,
  • Suitable for use with a 220/240volt supply
  • Gantry mounted controller installed on operators side (GO) as standard
  • The gantry controller can be installed on customer side (GC) on request
  • A wide range of optional extras are available, please call for details

Note: it is strongly recommended that the supply is protected by a suitably rated residual current protection device
Units up to 3kw are supplied complete with 13amp plug-top. Items above 3kw will need to be hardwired or fitted with commando plug.


Resources

Download the Intergrale Chilled Display Well Spec Sheet

Operation and Maintenance Manual

Airflow Direction Options

Airflow Manual

Line Drawing
