The Counterline Integrale Heated Ceramic Glass Hotplate Drop-in Display with Heated Gantry has individual heating elements per gastronorm section which allow for greater control for heating your food stuffs. This comes available in five sizes each with quartz heated light gantry. Also, this is by far one of the most popular units from Counterline and in our made to order units for bespoke counters this is perfect for schools, large company canteens, cafes and anywhere else you might be serving hot food.

Product Information

• External Dimensions: H 535 x W 1175 x D 660mm
• A ceramic hotplate display with individual elements per gastronorm module
• Collectively controlled by a single energy regulator
• Maintains pre-heated, cooked food at a regulated temperature
• Quartz heat lights over display controlled by electronic dimmer
• Gantry mounted controller on operators side (GO) as standard
• The gantry controller can be installed on customer side (GC) on request
• General construction from 304 and 430 grade polished stainless steel
• Curved toughened glass overshelf/sneeze screen
• Full internal fuse protection
• Electronic controllers located in gantry as standard
• Quartz top heat controlled by stepless electronic energy controller
• Lower heat mat elements on ceran hotplates controlled electronically
• Supplied with a 1.5m lead as standard, suitable for use with a 220/240volt supply
• We strongly recommend that the supply is protected by a suitably rated residual current protection device
• Units up to 3kw are supplied complete with 13amp plug-top
• Items above 3kw will need to be hardwired or fitted with commando plug
• Wide range of optional extras
• Weight: 39kg
• Wattage: 1.8kW
• Capacity: 3 x 1/1 GN Pan
• Temp Range: +3°C/+5°C
• Standard Warranty: 1 Year Parts & Labour
• Standard Delivery: 15 Working Days Approximately

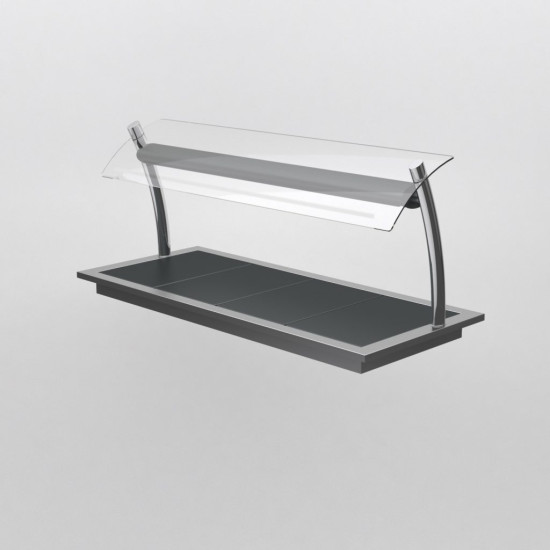

(Image Shows: IHCGH4-GO heated ceramic glass hotplate)
