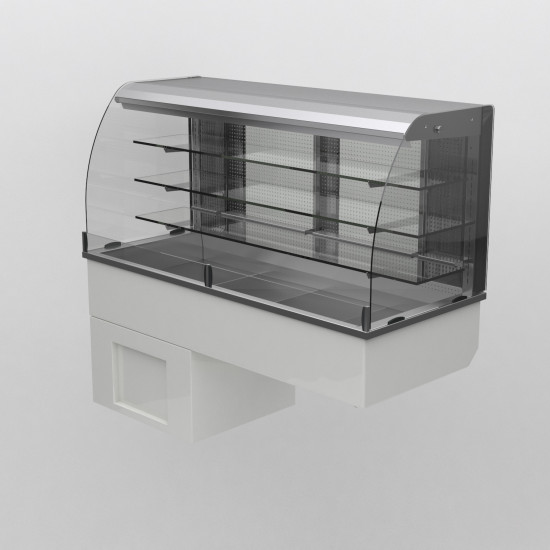

The Counterline Integrale Multideck Drop-in Display is a stylish drop-in multideck display unit for use with bespoke design counters as a self serve refrigerated shelving display. This is available in three different tier sizes all with three width options. All sizes have an adjustable display deck, gantry mounted controller and double glazed hinged rear service doors as standard.

Product Information

• External Dimensions: H 533 x W 825 x D 660mm
• Capacity: 2 x 1/1 GN Pans
• Shelving Tiers: 2
• Wattage: 2.7kW
• Weight: 110kg
• Standard Warranty: 1 Year Parts & Labour
• Standard Delivery: Estimated 15 Working Days
• Chilled display multidecks are designed for self help service
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature
• Double-glazed, full height side hinged doors included as standard
• The angle of the display deck can be adjusted for enhanced presentation
• Gantry mounted controller installed on operators side (GO) as standard
• The gantry controller can be installed on customer side (GC) on request
• General construction from 304 and 430 grade polished stainless steel
• Curved toughened glass overshelf/sneeze screen
• Full internal fuse protection
• Electronic controllers located in gantry as standard
• Chilled by recirculated cold air using fan blown evaporator
• Integral condensing unit and automatic condensate evaporator
• Resettable high pressure safety switch
• Digital electronic temperature control
• Display temperature 3-5°C in 25°C ambient at 50% relative humidity
• Standard airflow comes in from the customer side and out of the operator side
• The angle of the display deck can be adjusted for enhanced presentation
• All units are supplied with a 1.5m lead as standard, suitable for use with a 220/240volt supply.
• We strongly recommend that the supply is protected by a suitably rated residual current protection device
• Units up to 3kw are supplied complete with 13amp plug-top
